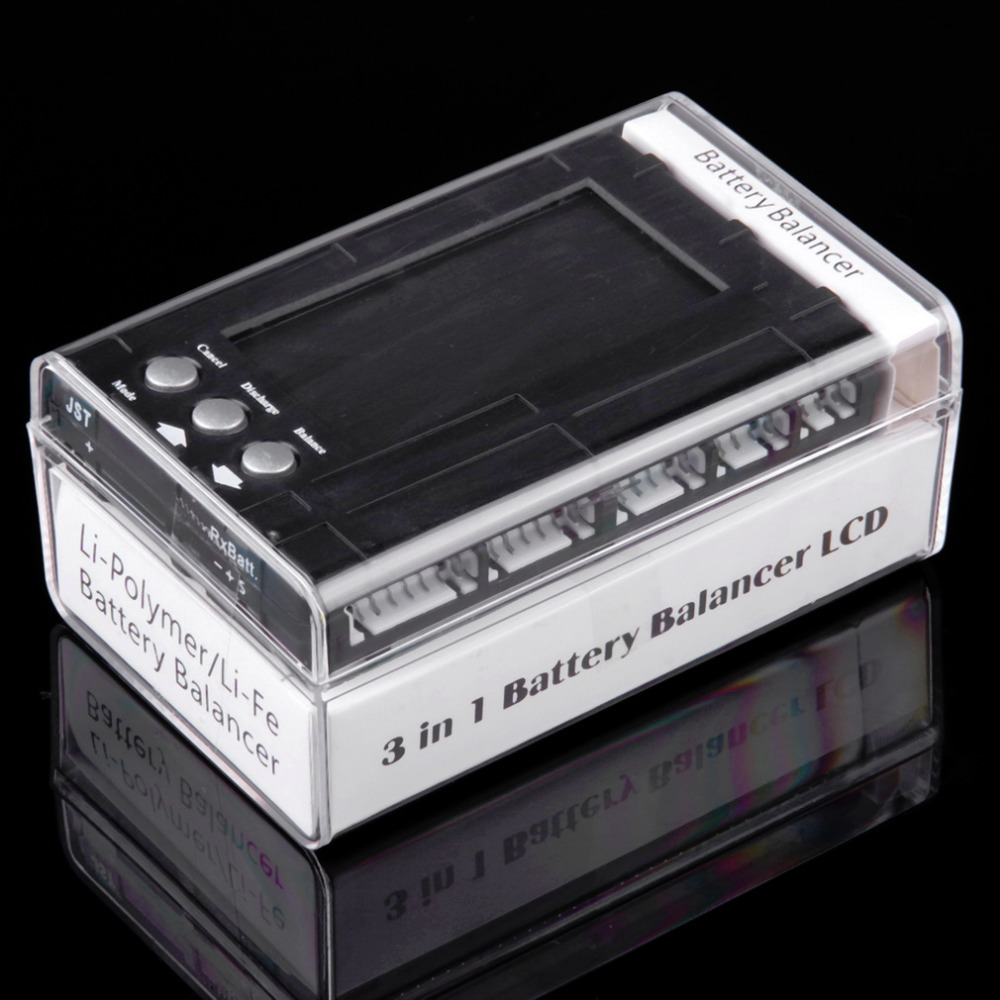

3 in 1 RC 2s~6s Lipo Li-Fe Battery Balancer LCD
The Balancer / Discharger is designed for Li-Polymer and Li-Fe battery, it can measure battery voltage precisely and balance cell voltage in battery pack, or discharging battery for long time storage.
The balance function can be executed before or after battery charged. It also can be done during battery charging process. It makes sure battery pack keeping in excellent condition.
User could observe all cell voltage in whole battery pack at once. It helps user to find out which cell is abnormal during charging or discharging process.
Dimensions: 93.5mm x 60mm x 17mm
Measureable Battery Type and amount: Li-Polymer / Li-Fe:2 - 6 Cell / 7.4V - 22.2V
Measureable Battery Voltage: Receiver Battery / 1.2V - 8.5V
Balance Voltage Setting Range (Lower Limit) : 2V - 4.2V(pre-setting value 3.3V)
Discharge Voltage Setting Range (Lower Limit) : 2V - 4.2V(pre-setting value 3.9V)
1. Product specification: ( CE certificate & ROHS compliant )
LxWxH : 93.5 X 60 X 17 mm
2. Measureable battery type and amount: Li-Polymer/Li-Fe 2 ~ 6
3. Cell(standard voltage 7.4 V ~ 22.2 V using divided voltage joint).
4. Receiver battery 1.2 V ~ 8.5V DC (Not limit battery type, but need external power source 7.4~11.1V, use JST joint)
5. Balance voltage setting range(lower limit):2.0V ~ 3.9V(pre-setting value 3.2V)
6. Discharge voltage setting range (lower limit):3.0V~ 4.2V(pre-setting value 3.9V)
