32bits F3 Brushed Flight Control Board

RM 80.00


Description: Manual

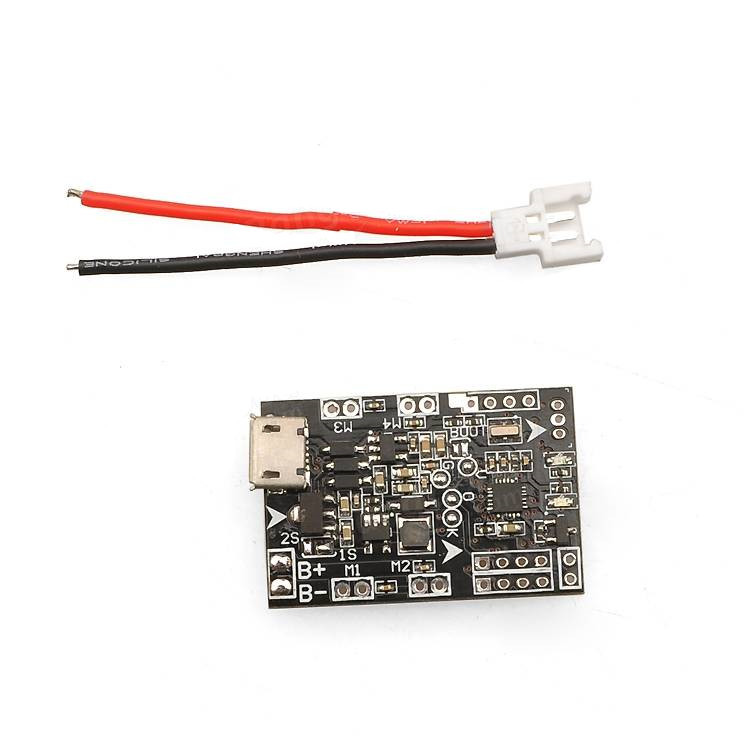

Item Name: SP RACING F3_EVO_Brush Flight Control
Dimension: 22mm*32.5mm
Thickness: 1.2mm
Weight: 3g


Features:
1. F3_EVO_Brush is in the revision on the basis of the F3 EVO SP RACING, it is a 32bits brush flight controller based on SP RACING F3 EVO firmware.
2. The flight control support 1S (4.2V) and 2S (8.4V) power supply, 2S power can bring flying experience more violence.
3. Independent design of the circuit structure, comes with the pressure reduction technology, whether it is 1S or 2S power input, UART1/2 output 5V, UART3 output 3.3V
4. Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight
5. With a large current NMOS transistors, operating current of up to 10A or more. Each machine is equipped with freewheeling diodes.
6. Support for PPM, SBUS, DSM receiver input signal.
7. With battery voltage detection and buzzer interface.
8.In support of the world almost all hollow cup motor, including 1020 coreless motor.
