Amass Dean-T Plug Connector With Sheath Housing

RM 1.80 RM 350.00

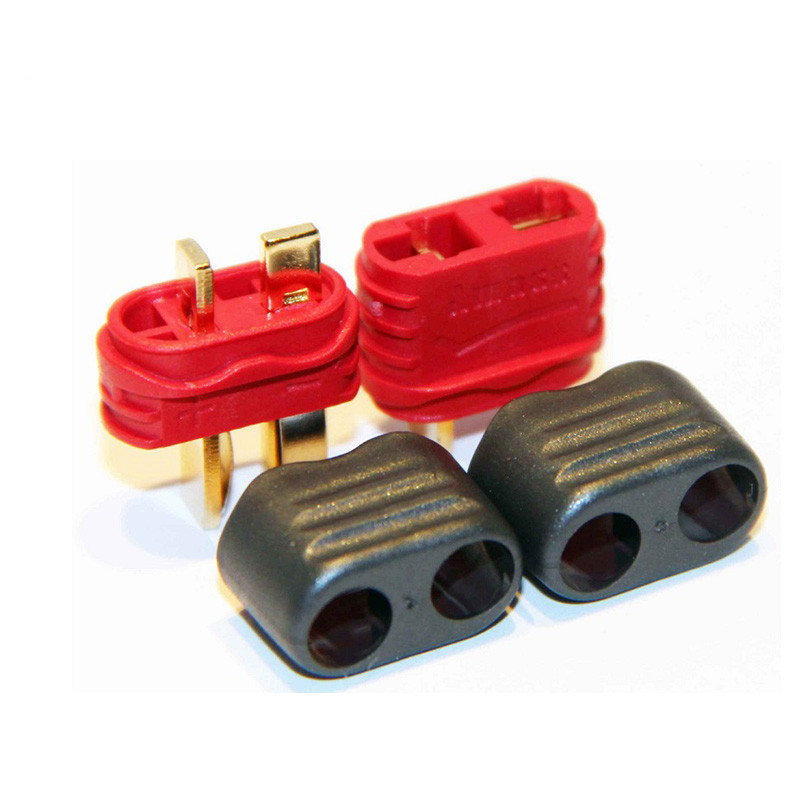

Amass T Plug Connector With Sheath Housing Male & Female
Description
Body Material and Surface Plating: Brass and gold plated
Internal Material: PA
Internal Resistance: 0.4mΩ
Max RC/MC:36A/60A
Temperature Resistance: -20oC-120oC
Pulling Force/500: 25N
N.W./Pair: 5.6g/pair
Recommend Use: 1000times
Recommend Cable Spec.: 12awg
Soldering Spec.: 480oC/4S


Attention
1.It will be more beautiful if you can solder the
cable on the hollow housing side.
2.We can use the hard thing to press the housing and once
you assembled the housing,it will be very hard to pull down,
please"break the housing",not "pull"


Package List
1pair male & female
