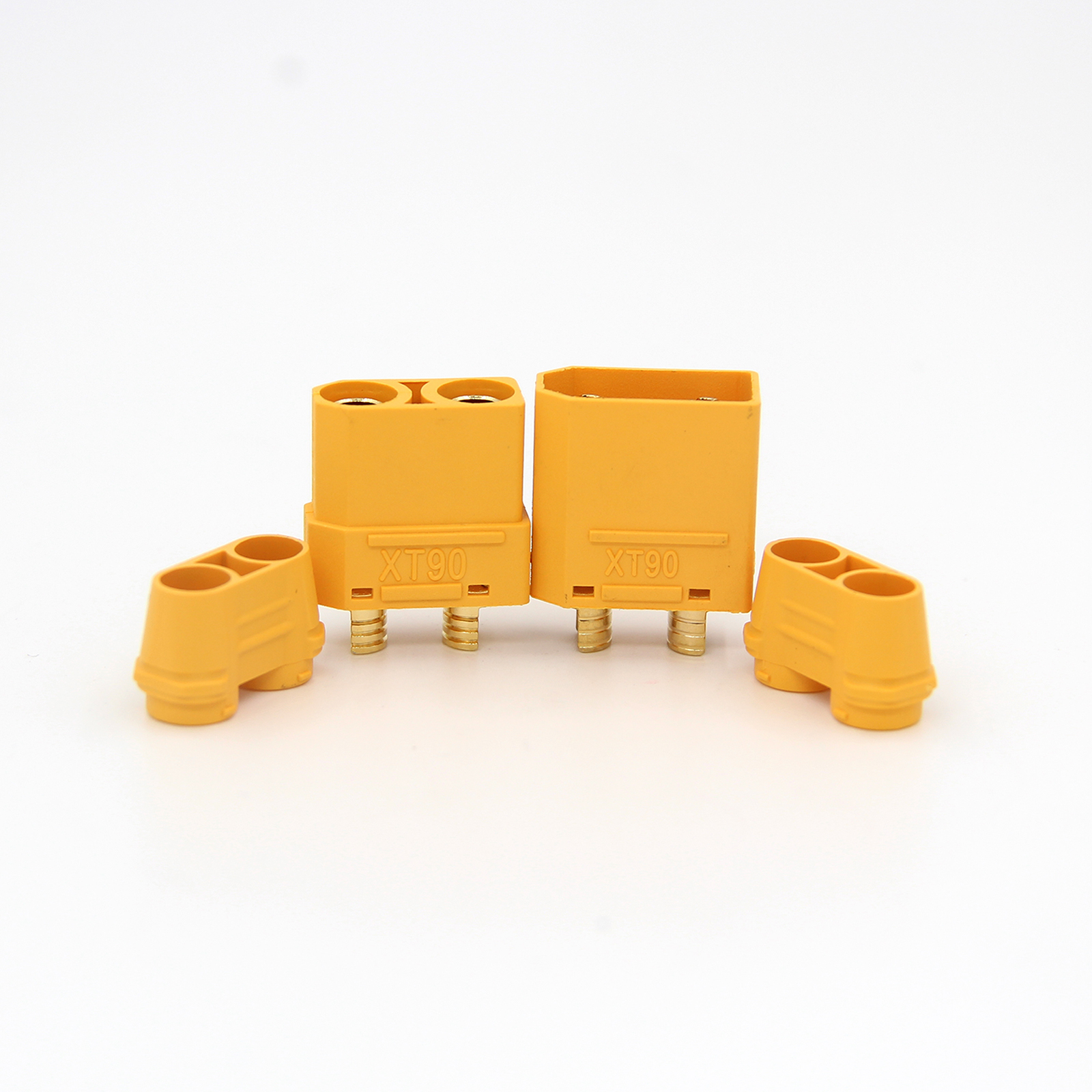

Amass XT90H Connector

RM 8.00


Features:

  • Use 4.5 mm banana plug and lightweight design, small volume and large current resistance.
  • Hollow plastic parts design, can use the model jet stream to actively cooling the plug
  • Newly increased sheath design, more convenient and practical
  • These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in.
  • The shape of the XT90 prevents reverse polarity, and when plugged in the connection is super-solid.
  • Perfect for applications up to and beyond 80-100A continuous draw.


Specifications:

  • Brand Name: Amass
  • Item Name: XT90H connector
  • Body Material & Surface Plating: Brass and gold plated
  • Insulation Material: Nylon/PA
  • Temperature Resistance: -20°C - 120°C
  • Pulling Force/500: 60N
  • Recommend Cable Spec.: 10AWG
  • Soldering Spec.: 480°C/4S
  • Weight/Pair: 12.8g
  • Recommend Use: 1000 times


Package including

  • 1pcs XT90H Male
  • 1pcs XT90H Female
