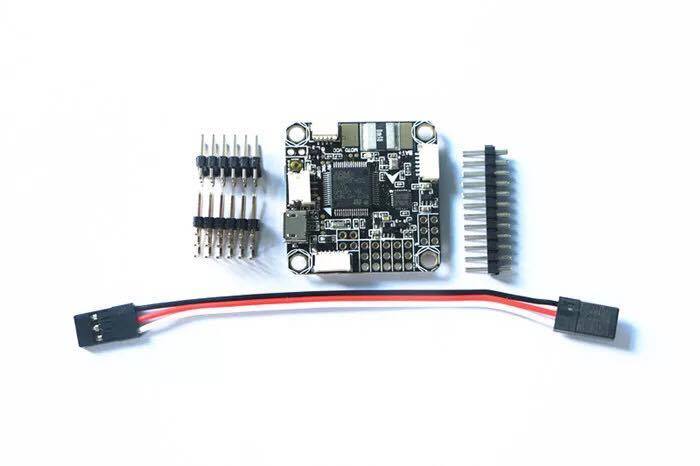

Betaflight OMNIBUS F4 Flight Controller Built-in OSD w/ Power Module

RM 110.00


Description:
- Item name: Betaflight F4 Flight Controller
- Size: 36x36mm
- Mount holes: 30.5x30.5mm

Features:
- STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time.
- Using F4 MCU controls OSD over SPI bus in DMA mode.
- OSD Configation has been included in Betaflight GUI.
- SBUS/PPM input (Pinheaders)
- 6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
- NO BARO
- SPI Sensor MPU6000
- Included 128Mbit Flash, please always use BEC for the FC.
- Supported by BETAFLIGHT and dRonin


Package included:
- 1x Betaflight OMNIBUS F4 flight controller Built-in OSD + Power Module
