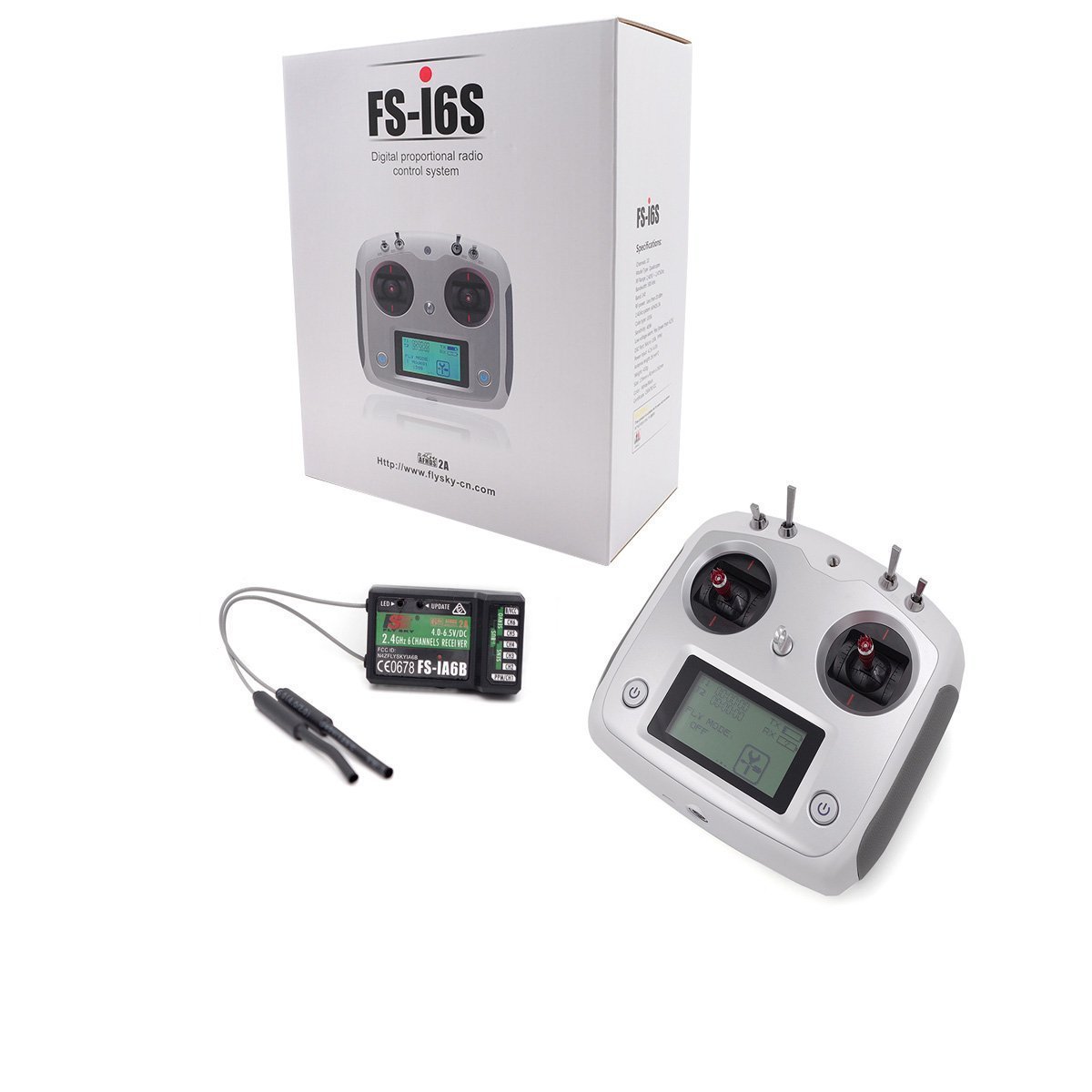

Flysky FS-i6S 2.4G 10CH AFHDS Transmitter With FS-iA10 Receiver

RM 288.00


Description:
Brand Name: Flysky
Item Name: FS-i6S with FS-iA10B receiver
Mode: Mode 2(Left hand throttle)

Note: This transmitter is only compatible with Flysky 2A system receiver.

Specifications:



FS-i6S Transmitter
FS-iA10B Receiver
Channel
6
10
Frequency
2.4055 - 2.475GHz
2.4055-2.475GHz
Band Width
500KHz
-----
Band Number
140
140
Transmitting Power
<20dbm
-----
Receiver Sensitivity
-----
-105dbm
2.4G Mode
AFHDS 2A
AFHDS 2A
Modulation System
GFSK
GFSK
Joystick Resolution
4096 class
-----
Low-Voltage Alarm
<4.2V
-----
Charging Port
Yes (USB)
-----
Input Voltage
4.2V-6.0V
4.0V-6.5V DC
Antenna Length
26mm (dual antenna)
26mm (dual antenna)
Weight
410g
17.6g
Dimension
179*81*161mm
50.6*34.9*14.9mm
Color
Black,white (optional)
Black
Mode
Mode 2
-----
i-BUS Port
-----
Yes
Data Acquisition Port
-----
Yes
Output Format
Compatible S.BUS
-----
Certification
CE0678,FCC
CE0678,FCC



Features:
Full touchscreen interface,more convenient to control
Bidirectional Communication
Capable of sending and receiving data,each transmitter is capable of receiving data from temperature,altitude and many other types of sensors,servo calibration and i-BUS Support.

Multi-channel Hopping Frequency
This systems bandwidth ranges from 2.4055GHz to 2.475GHz. This band is divided in 140 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean versions) in order to reduce interference from other transmitters.

Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on interference,while using less power and maintaining a strong reliable connection.

Unique ID Recognition System
Each transmitter and receiver has its own unique ID. Once the transmitter and receiver have been paired,they will only communicate with each other,preventing other systems accidentally connecting to or interfering with the system's operation.

Low Power Consumption
The system is built using highly sensitive low power consumption components,maintaining high receiver sensitivity,while consuming as little as one tenth the power of a standard FM system,dramatically extending battery life.


This firmware will add model memory function to your transmitter,no need to calibrate after flashing the firmware.

New Firmware Features:
New (Trims) function
New (Rate/Exp.) function
New(Throttle curve) function
NEW(Throttle mode) function
New(models) function, supports 5 modes groups
New Context aware reset function
New low signal alarm function

Package Included:
1x Flysky FS-i6S Transmitter
1x Flysky FS-iA10B Receiver

1x User Manual

Note: This FS-i6S is not included Phone Holder
