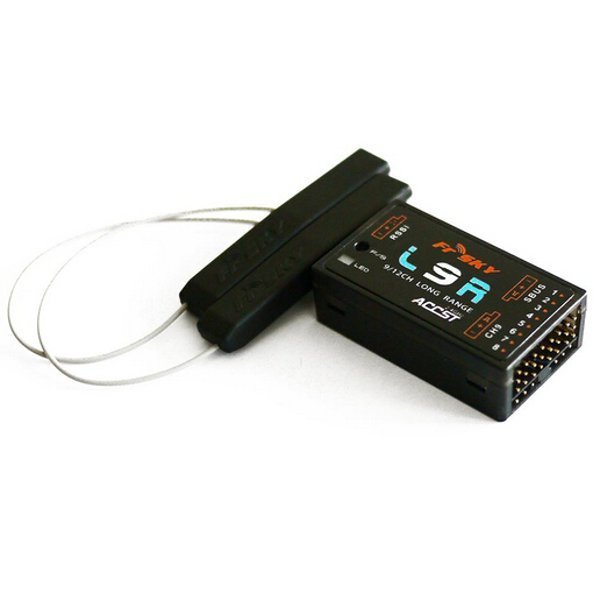

FrSky L9R Long Range Receiver
FrSky L9R receiver is the new long range unit from Frsky and offers up to twice the range of the standard X series receivers.
It should be noted that L9R is a non-telemetry receiver and therefore not Smartport or Data Hub compatible.
Dimension: 46.25 x 26.6 x 14.2mm (L x W x H)
Antenna: PCB Antenna
Number of Channels: 1-9ch from conventional channel outputs, 1-12ch from SBUS port
RSSI output: Analog RSSI output (0-3.3V)
Operating Voltage Range: 4.0-10V
Operating Current: 100mA@5V
Operating Range: approx. 2 times that of X-series receivers
FrSky X-series Module (XJT) etc in LR12 mode (Switch 1 is OFF, Switch 2 is ON)
FrSky Taranis X9D etc. in LR12 mode
L9R receiver does not work with FrSky V8, D8, and D16 Mode.
L9R has a bind protocol that differs from the X series - PLUS failsafe is set to last signal by default, so the user must ensure to set the failsafe to work as preferred. Failsafe cannot be set from the TX, so the manual should be consulted for the relevant information.
1 x FrSky L9R Receiver
