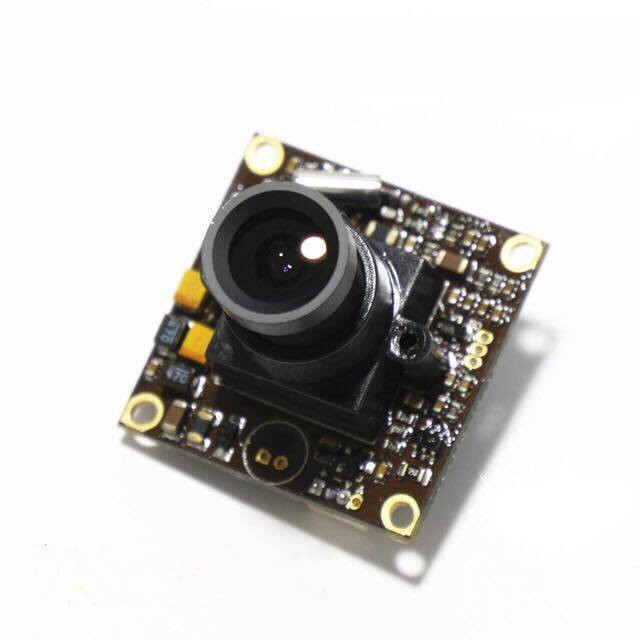

HD / ultralight SONY Sony 700 line CCD camera

RM 75.00


Specification:

Shell Size : 32mm * 32mm, weight : 13 grams
Total pixels : PAL: 1020H × 596V (61 million pixels ) NTSC: 1020H × 508V (52 million pixels )
Effective pixels : PAL: 976H × 582V (57 million pixels ) NTSC: 976H × 494V (48 million pixels )

Signal system : PAL / NTSC ( default PAL.OptionalNTSC system )
Resolution ( horizontal center ): 700TVL
Digital Noise Reduction : 2D Digital Noise Reduction (2DNR) 0-15 16 support level can be adjusted

WDR: digital wide dynamic (adaptive gradation reproduction)
OSD menu : Support
Minimum illumination : 0.01LUX / F1.2
SNR : ≥48dB
Video output amplitude : 1.0Vp-p / 75Ω
AGC : 0.25 / 0.50 / 0.75 / 1.00 four levels can be adjusted to up to 55dB
White Balance : On / Off selectable
Backlight Compensation: high brightness backlight compensation (HLC) / Backlight Compensation
Exposure mode : Electronic exposure
Electronic Shutter : 1/50 (1/60 ) - 100000 seconds
Gamma Correction: 0.45 / 1.0
Synchronization: Internal synchronization
Lens: Standard 2.8mm lens
Operating voltage : DC12V( Wide voltage , measured can 7.5-13V work)
Operating Current : 70mA(Low-Power )
Working temperature : -20 ° --60 °

Humidity: 0 % to 98%
