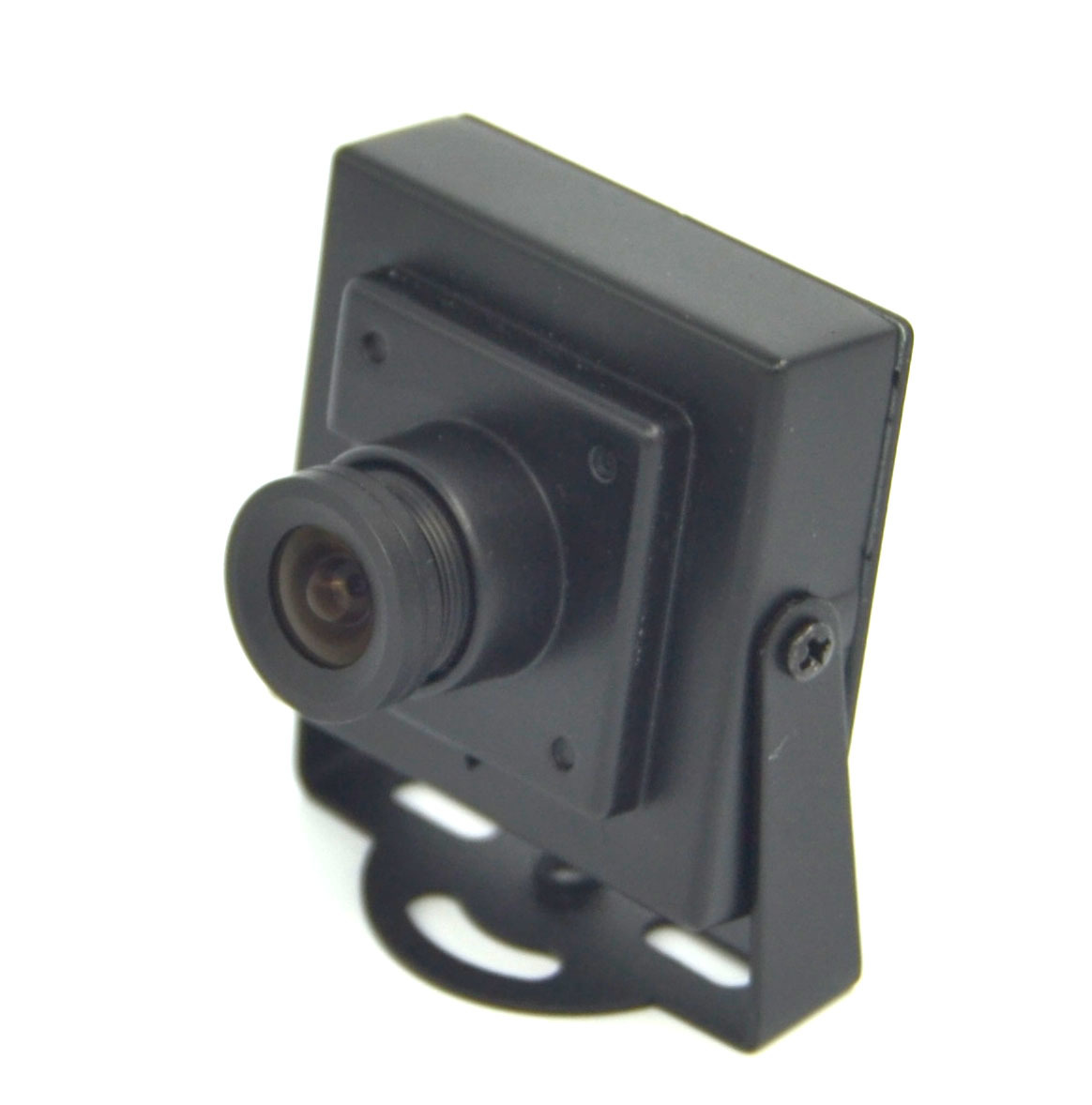

HD 700TVL 1/3" SONY PAL FPV Camera

RM 48.00


Features:
Super high resolution D-WDR color camera;
700TVL horizontal resolution;
2.1mm Wide Angle lens;
D-WDR;
2D NR;
White spot repair function;
HLC, private mark function;
Reversing guideline function;
Day/night mode is optional;
Support OSD menu;
Next chip 2090;


Specification:
Image Device: 1/3 Inch SONY 960H EX view Sensor
System: PAL 3.6mm
Resolution: 700TVL
Min. Illumination: 0.03 Lux / F1.0
S/N Ratio: More than 52dB
Electronic Shutter: 1/50(60) to 1/100,000
White Balance: Auto
Digital Wide Dynamic Range (D-WDR): ON / OFF
Digital Noise Reduction (2D NR): ON / OFF
Auto Gain Control (AGC): Auto
DAY/NIGHT Mode: Auto/ Color/ Black and White/ External Trigger
Back Light Comp (BLC): ON / OFF
Private Mask: ON / OFF (8 replaceable zone)
Sync. System: Internal synchronization
Video Output: 1Vp-p / 75©Ó
Power Requirements: DC 12V
Power Consumption: 80 mA
Operating Temp.: -10 C to +50 C ( 14 F to 122 F )
Operating Humidity: 20 to 80 %
Storage Temp.: 40 C to +60 C ( -40 F to 140 F )
Storage Humidity: 20 to 95 %
Dimension: 36mm x 36mm
Package size: 9.5 * 6.5 * 5.5cm / 3.7 * 2.6 * 2.2in
Package weight: 101g / 3.6oz


Package list:
1 * camera with lens
2 * video cables
1 * English Manual
