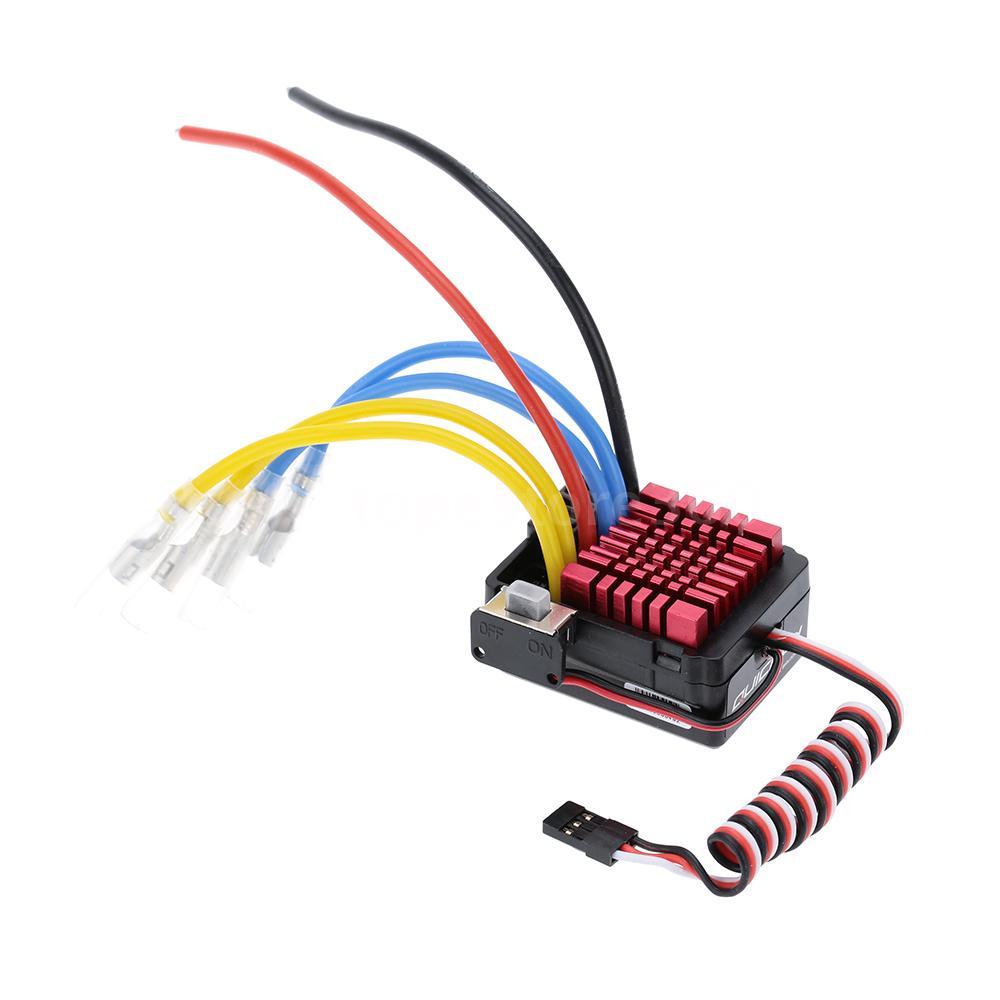

HobbyWing QUICRUN 860 Brushed ESC

RM 96.00 RM 12,000.00


Features

  • Water-proof and dust-proof, suitable for all-weather condition races
  • Small size with built-in capacitor module.
  • Four running modes to fit various vehicles
    • Fwd/Br/Rev
    • Fwd/Br
    • Fwd/Rev (also called Crawler Mode)
    • Boat mode
  • Great current endurance capability
  • Switch mode built-in BEC has powerful output.
  • Automatic throttle range calibration, easy to use.
  • Easy to set the ESC parameters with dial switche
  • Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection

Specifications

  • Fwd. Cont. / Peak Current: 60A /360A
  • Rev. Cont. / Peak Current: 30A /180A
  • Voltage Range: 2-4S Lipo or 5-12 NiMH
  • Cars Applicable: 1/8&1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank; Boat
  • Motor Limit:
    • 2S Lipo or 6 cells NiMH: 540, 550, 775 Size Motor: ≥12T or RPM<30000 @7.2V
    • 3S Lipo or 9 cells NiMH: 540, 550, 775 Size Motor: ≥18T or RPM<20000 @7.2V
    • 4S Lipo or 12 cells NiMH: 540, 550, 775 Size Motor: ≥24T or RPM<15000 @7.2V
  • Resistance: Fwd 0.001Ω, Rev 0.002Ω
  • BEC Output: 3A/5V (Switch Mode)
  • PWM Frequency: 1KHz
  • Dimension: 46.5*36*26.3
  • Weight: 73g
  • Cooling Fan: Cooling fan works with 2-3S Lipo
  • Running Modes: Fwd/Br/Rev, Fwd/Br, Fwd/Rev(Crawler), Boat mode
