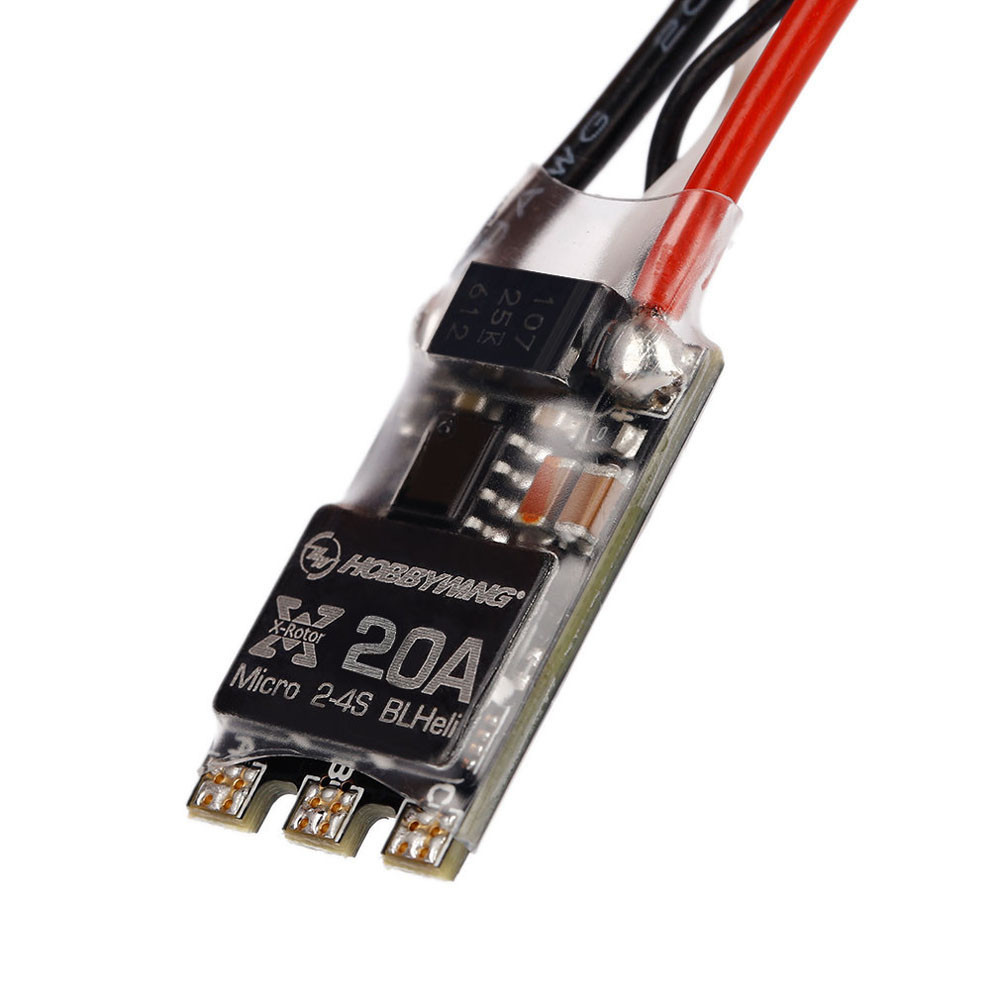

Hobbywing XRotor Micro BLHeli 20A 2-4S

RM 48.00


Feature:

Super Small & Light:

  • ESCs with incredible small size and light weight are specially designed for competition FPV drones

Quality components:

  • F396 48MHz MCU, 3-in-1 drive IC, High quality MOSFETs

BLHeli firmware ready:

  • Users can flash or upgrade the BLHeli firmware via the signal cable (on ESCs), and program 4 ESCs
  • simultaneously after connecting their flight controller to the BLHeliSuite software if the flight controller uses the CleanFlight firmware

Damped Light Mode & OneShot125 Mode Supported:

  • Damped light mode improves the motor retardation and allows
  • users to brake the FPV drones more efficiently. Active-freewheeling, technology improves driving efficiency, flight time and heat
  • dissipation. The ESCs support OneShot125 high speed throttle, signal and regular throttle signal (within 500Hz) modes

Twisted-Pair Signal Cable Reduces Interference:

  • Effectively reduces interference produced in signal,  transmission and makes the flight much more stable and reliable


Specification:
Brand: XRotor
Product Name: XRotor micro 20A BLHeli
Cont./Peak Current: 20A/30A
LiPo Cells: 2-4S LiPo
BEC Output : NO
DEO: Not Supported
OneShot Mode: Supported
Timing: Supported
Light Color: Not Supported
Motor Rotation: Supported
Throttle Range Calibration: Supported
Stick Programming: Stick Programming/BLHeliSuite
Size(mm)L*W*H: 24x13.9x5.5mm
Weight: 6.8g
Applications: FPVs with 130-280mm Diagonal Wheelbase
