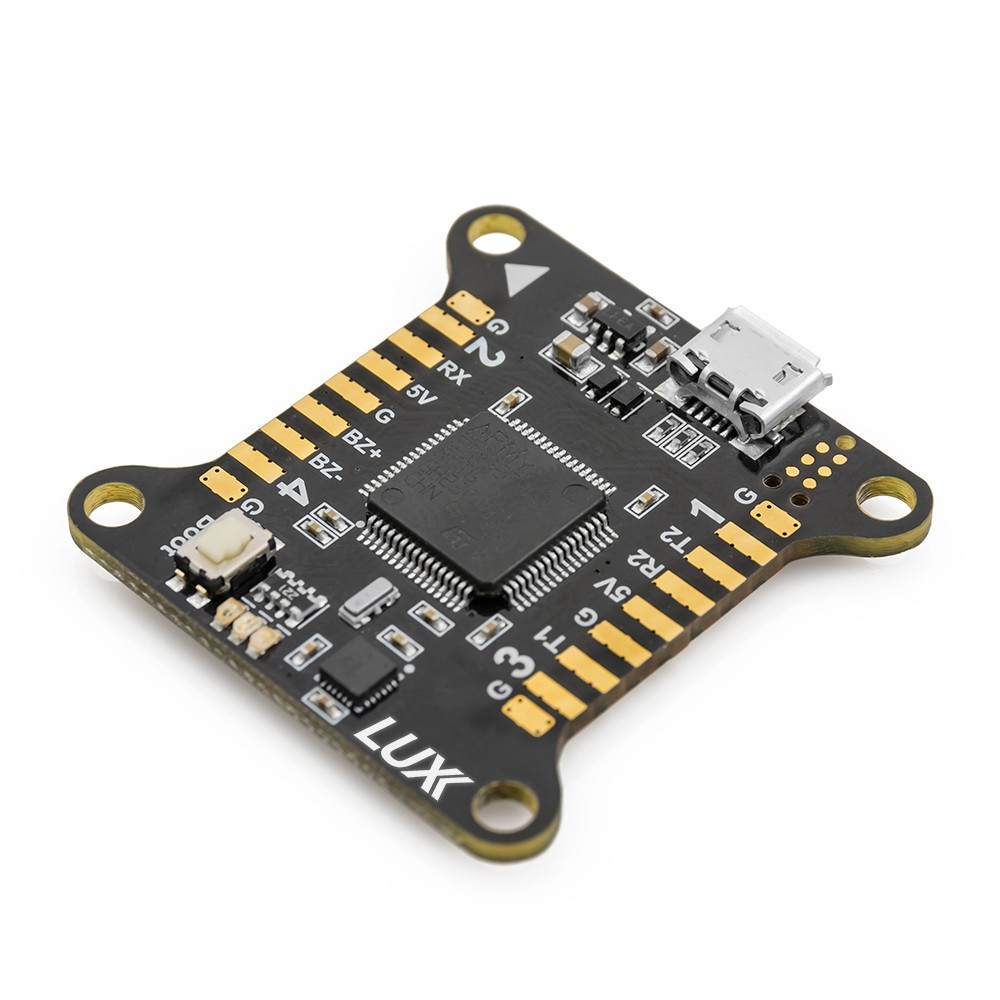

Lumenier LUX Flight Controller

RM 85.00 RM 9,500.00


Hardware Features

  • USB Conflict resolution - Hardware inversion, SBUS or telemetry can be used on any of the 3 available hardware serial ports. USB will not interfere with peripherals.
  • High Speed SPI 8kHz Gyro
  • MPU interrupt connected to F3, allowing the F3 to know immediately when fresh data is available.
  • Dedicated Boot button for easy firmware flashing.
  • Reinforced solder pads for trouble-free direct soldering.
  • Extremely low profile design.
  • Recessed, sideways pin headers. Also enables soldering of all wires directly to pads without use of any pin headers.
  • Integrated FRSky RSSI Filter (RC filter).
  • Input voltage 6v to 24v. Power the board directly from flight pack up to 6S (on 'BAT' pad only!).
  • VIN + VBAT merged - A single wire to power the board will provide voltage input and Telemetry/OSD voltage data.
  • Filtered voltage output - output 5v 1A (and 3.3v where applicable) to power peripherals such as GPS, RX, BLACKBOX, OSD. 5v/3.3v RX selectable.

Software/Hardware Features

  • Cleanflight support (RACE target).
  • BLHeli flashing supported by hardware
  • Raceflight ready
  • Betaflight ready

Specifications

  • STM32F303RCT6(256kB flash) 32-bit processor
  • MPU6500 Gyro/Accelerometer
  • High quality, gold plated PCB
  • Highest quality components, individually sourced to meet Lumenier standards
  • Micro USB connector for programming
  • Dimensions: 36x36x6mm (includes USB in height)
  • Mounting Holes: 30.5mm square to center of holes
  • Weight: 6g

Includes

  • 1x Lumenier Lux Flight Controller
  • 2x 2x7 Straight Pin Headers
