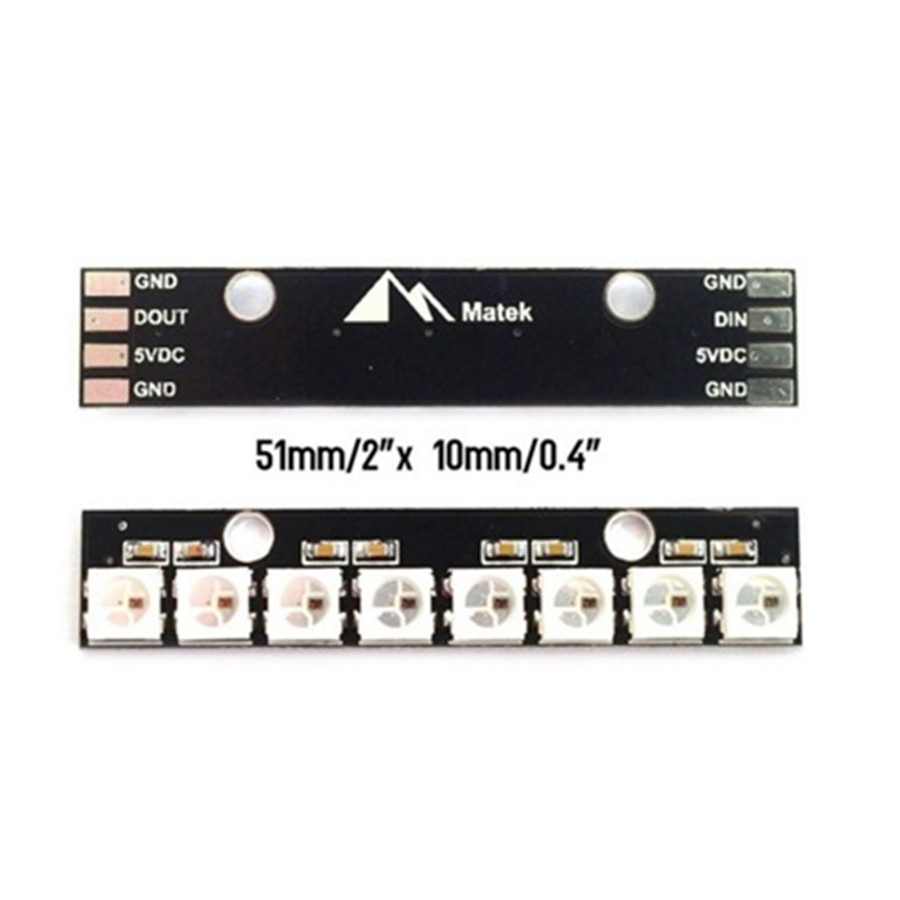

Matek 8 Bit WS2812B RGB 5050 Highlight LED

RM 17.00


Description:

  • Brand Name:Matek
  • Item Name:WS2812B RGB 5050 LED
  • Voltage: about 5V
  • Ports: Digital
  • Size: 51x10 mm
  • Platform: AVR, Arduino,Naze32 / CC3D Flight Control (need to brush CleanFlight)



Features:

  • Built-in controller chip, only need an IO port to control multiple LED
  • Chip built-in shaping circuit,signal distortion is not cumulative, stable display
  • Trichromatic 256 brightness adjustment, scan frequency is not less than 400Hz / S
  • Serial connection-level interface, through a signal line to finish receiving and decoding data
  • Both ends have interfaces (DIN DOUT) that can be cascaded
  • Will show the flight control lock / unlock,left and right aileron, brake, throttle, alarm and other status.



Note:

If it is used for Naze32 or CC3D flight control,it need to brushed  CleanFlight, and using PPM receivers.



Used for CC3D flight controller,you should pay attention to the following points:

  • -CC3D need to brushed CleanFlight firmware.
  • -Using PPM / SBUS receiver, you don’t use PWM receiver.
  • -GND 5V DIN behind the lights should connected to CC3D fifth row - + S of the motor output side.
  • -Choosing PPM receiver in the CF's assistant software configuration,then choose LED_STRIP options.
  • -Finally into the CF assistant software LED Strip Page to setup various states.



Package Included:

1x WS2812B RGB 5050 LED
