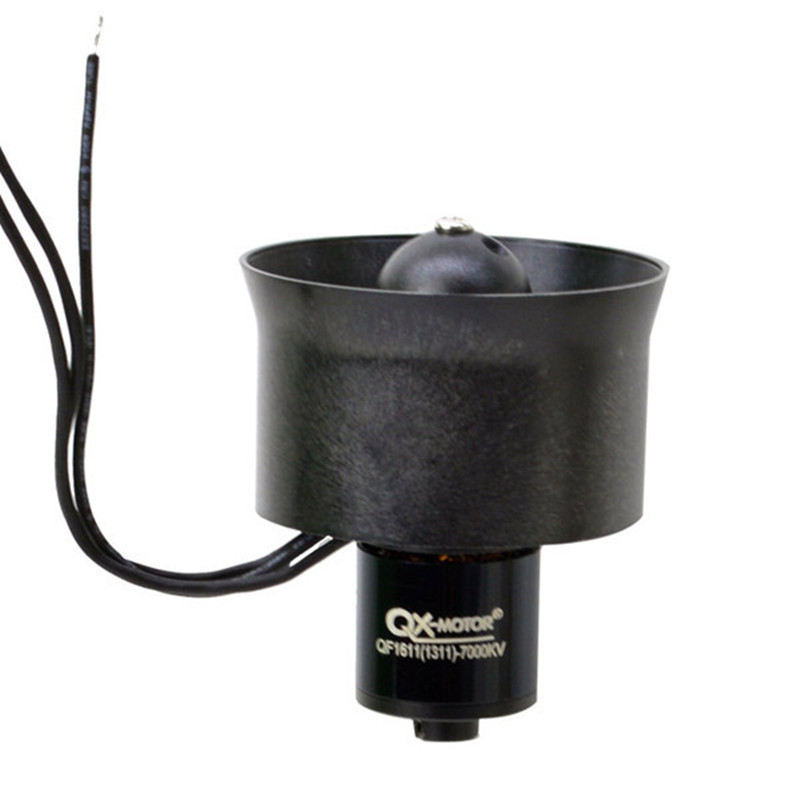

QX-Motor QF1611-7000kV / 14000kV 30mm 6 Blades EDF

RM 66.00


Description:

Brand Name: QX-Motor

Item Name: EDF unit with brushless motor set

EDF Unit: 30mm 6 blades

Brushless Motor: QF1611-7000KV


Specifications of Motor:

KV7000Idle Current @10.0V0.5A
Configuration9N6PNo.of Cells(Lipo)2S
Stator Diameter13mmMax Continuons Current(A)/60s12A
Stator Length11mmMax Continuous Power(W)/60s120W
Motor Dimension16x25mmWeight19.5g

Testing Data:

PropVolts(V)Amps(A)Watts(W)Thrust(g)Thrust(oz)Efficiency(g/w) Efficiency(oz/w) Throttle
30FAN11.11.718.87441.552.330.0850%
30FAN11.12.527.75572.012.050.0760%
30FAN11.13.336.63742.612.020.0770%
30FAN11.14.853.281043.671.950.0780%
30FAN11.111.2124.322207.761.770.06100%

Package Included:

1x QX-Motor 30MM 6 Blades EDF Unit With QF1611-7000KV Brushless Motor


Description:
Brand Name: QX-Motor
Item Name: EDF unit with brushless motor set
EDF Unit: 30mm 6 blades
Brushless Motor: QF1611-14000KV

Specifications of Motor:
KV 14000 Idle Current @10.0V 0.5A
Configuration 9N6P No.of Cells(Lipo) 2S
Stator Diameter 13mm Max Continuons Current(A)/60s 12A
Stator Length 11mm Max Continuous Power(W)/60s 120W
Motor Dimension 16x25mm Weight 19.5g


Testing Data:
Prop Volts(V) Amps(A) Watts(W) Thrust(g) Thrust(oz) Efficiency(g/w) Efficiency(oz/w) Throttle
30FAN 7.4 19.3 142.82 215 7.58 1.51 0.05 100%


Package Included:
1x QX-Motor 30MM 6 Blades EDF Unit With QF1611-14000KV Brushless Motor
