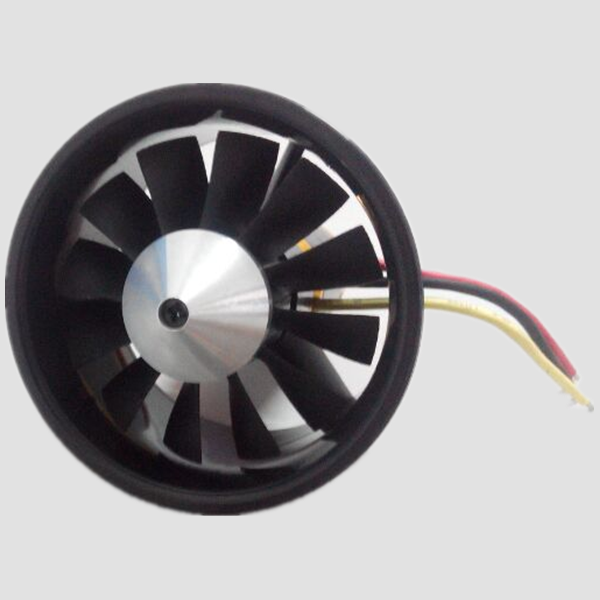

QX Motor QF2822-3500kV 64mm 12 Blade EDF

RM 15.00


Description:
Brand Name: QX-Motor
Item Name: Ducted fan with brushless motor set
Ducted Fan: 64mm 12 blades
Motor: QF2822 brushless motor
Recommended Battery: 3-4s Lipo (not included)
Recommended ESC: 60A,80A (not included)

Specifications of Motor:

KV3500Idle Current @10.0V3.5A
Configuration9N6PNo.of Cells(Lipo)3-4S
Stator Diameter22mmMax Continuons Current(A)/60s55A
Stator Length22mmMax Continuous Power(W)/60s850W
Shaft DiameterΦ4mmMax Efficiency>70%
Motor Dimension28x61mmInternal Resistance0.033oh,s
Weight90gRecom. ESC65A


Tested With 80A ESC:

PropVolts(V)Amps(A)Watts(W)Thrust(g)Thrust(oz)Efficiency(g/w)Efficiency(oz/w)
64FAN/12-Blade14.8V52.0769.6125044.091.620.06
