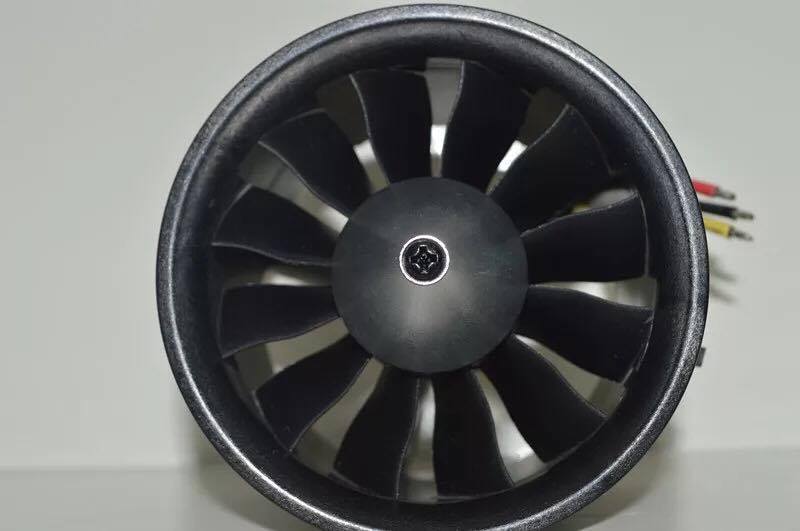

QX Motor QF2827-2600kV 70mm 12 Blade EDF

RM 20.00


Description:
Brand Name: QX-Motor
Item Name: Ducted fan with brushless motor set
Ducted Fan: 70mm 12 blades
Motor: QF2827(9) brushless motor

Specifications of Motor:

KV
2600
Idle Current @10.0V
2.0A
Configuration
12N8P
No.of Cells(Lipo)
4S
Stator Diameter
22mm
Max Continuons Current(A)/60s
62A
Stator Length
27mm
Max Continuons Power(W)/60s
1000W
Shaft Diameter
Φ4mm
Max Efficiency
>70.5%
Motor Dimension
24x48mm
Internal Resistance
0.035oh,s
Weight
107g
Recom. ESC
80A



Tested With 80A ESC:

Prop
Volts(V)
Amps(A)
Watts(W)
Thruse(g)
Thrust(oz)
Efficiency(g/w)
70FAN
16.5
62.0
1023
1800
63.49
1.76
70FAN
16.5
61.0
1006.5
1500
52.91
1.49
