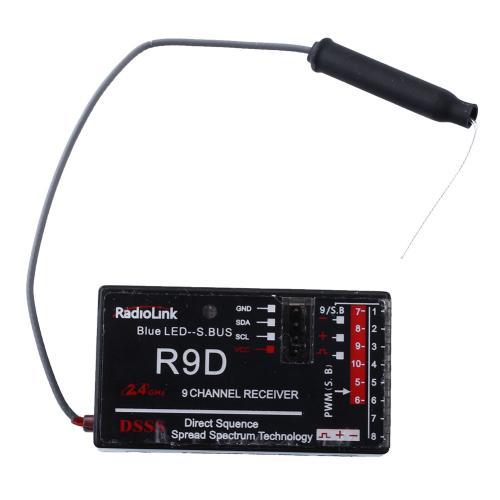

Radiolink R9D 9-CH 2.4GHz DSSS Receiver

RM 67.00


This R9D 2.4G 9ch receiver will work perfectly with RadioLink AT9 and AT10 Transmitter, please bind it before first use.

Features:
1. DSSS technique, super anti-interference
2. RX voltage and signal strength telemetry, extensional sensor for EP, Temperature, RPM, GPS etc.
3. S.BUS. CH9 is set for S.BUS
4. All 9channel needs 3ms to response parallel
5. Section precision 4096, stable the servo, rudder shaking free.
6. HV input up to 10V
7. MINI design for convenient assembling and operating

Specifications:
1. Channel: 9channel, CH9 is for S.BUS
2. Max input voltage: 10V
3. Current: 38-45 mA Voltage input: 5V
4. Size: LxWxH: 43x24x15
5. Section precision 4096

How to bind?
1. Please turn on your transmitter and select a memory slot.
2. Power on the aircraft, then Press and Hold the very small black button on the side of the receiver, until the LED goes flashing, then release the button.
3. After a few seconds it will automatically bind with the transmitter.

How to swap between SBUS and PWM mode?
1. Make sure the receiver has already been bound to transmitter.
2. Double tap the very small black button on the side of the receiver (within 1 sec.), then the LED light will change color, Blue is S.Bus, Red is PWM.
