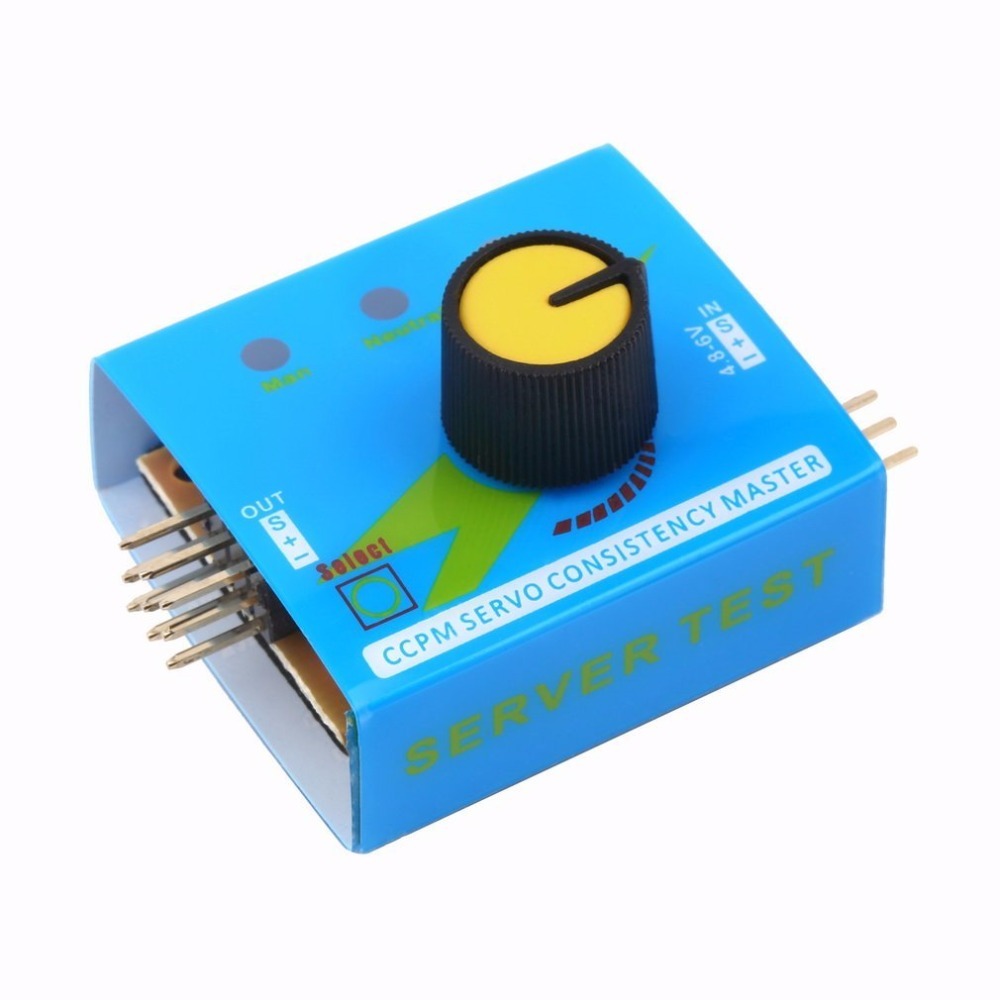

Servo Tester

RM 12.00


Features:

  • CCPM Servo Consistency Master / Servo tester
  • The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.
  • There are 3 modes to check servos or ESC:
  • Manual mode: turn the knob with different speed, check the reaction time.
  • Neutral mode: make the servo go back to the neutral point.
  • Automatic \"window wiper\" mode: make the servo swing like a window wipers in the biggest angle.
  • It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
  • You can also connect 1-3 ESC to test and compare their reaction time respectively.
  • It can connect 3 servos of the CCPM helicopters and select servos.
  • It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.


Specification:
Voltage consumption: DC4.8-6V
Size: 46 x 32 x 16mm ( approximately )
Original box: NO
Color: Blue
Item size: 46*32*16 mm ( approximately )
Net weight: 9g


Packet content:
1 x multi Servo tester
