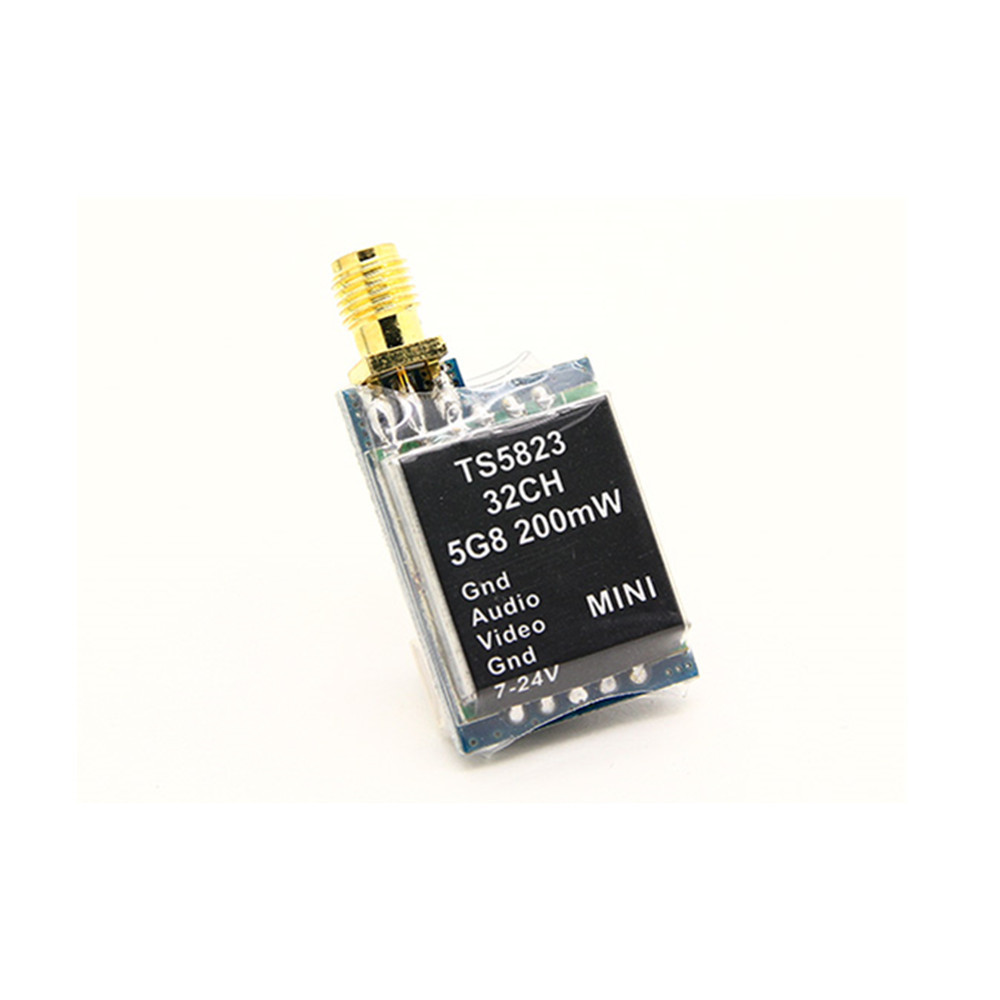

TS5823 5.8GHz 32CH A/V 200mW Mini FPV Transmitter

RM 55.00


Features:
• Micro sized and light weight - perfect for use with small models
• 32 channels: Cover A, B, E bands and F bands
• Transmitter frequency: 5645-5945MHz with 200mW power output
• Transmitting distance > ~1500m (open area)


Modulate: Wideband FM Modulate
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 23~24dBm
Channel: 32CH
Operating Voltage: 7V~24V
Supply Current: 190mA
Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
Audio Carrier Frequency: 6.5MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Connector: RP-SMA
Dimension: 40mm x 23mm x 8mm
Weight: 7.3g (without antenna)
