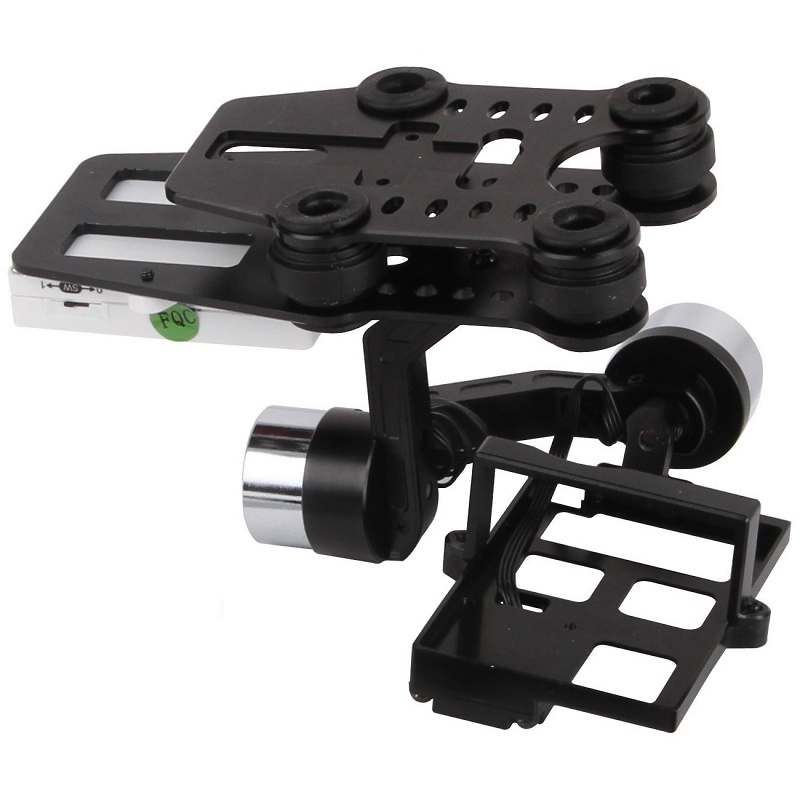

Walkera G-2D 2 Axis Camera Gimbal

RM 310.00


Product Highlights

  • Support the GOPRO Hero3 video aux output
  • Support the power supply voltage reverse connection protection and voltage compensation
  • Support for motor drive side short circuit protection
  • Support initial pitch angle
  • Support the sensitivity parameters adjustment and the software 3 d posture display

Specification:

  • Brand Name: Walkera
  • Item Name: G-2D gimbal
  • Operating voltage: 7.4V ~ 14.8V DC (recommended 12 V, 3S lipo battery)
  • Work current: 200 mA - 500 mA
  • Working environment temperature: -15-65C
  • Sensors: three MEMS gyroscope rotor and rotor MEMS accelerometer
  • Maximum angular rate: 2000 deg/ SEC
  • Maximum acceleration: 16g
  • Control frequency: 1000 Hz
  • Motor drive frequency: 32 kHZ (noiseless smooth drive)
  • Accuracy: 0.1 deg
  • Control Range: - 45 ~ 45 (Roll), - 135 ~ 90 (Pitch)
  • Applicable filming equipment: GOPRO Hero3
  • Size: 100 x 94.5 x 84mm
  • Weight: about 120g
